When selecting lattice planes and zone axes, the angles between the last two [uvw] and (hkl) in the stereographic projection of the Kikuchi pattern are given on the basis of the specified projection center.

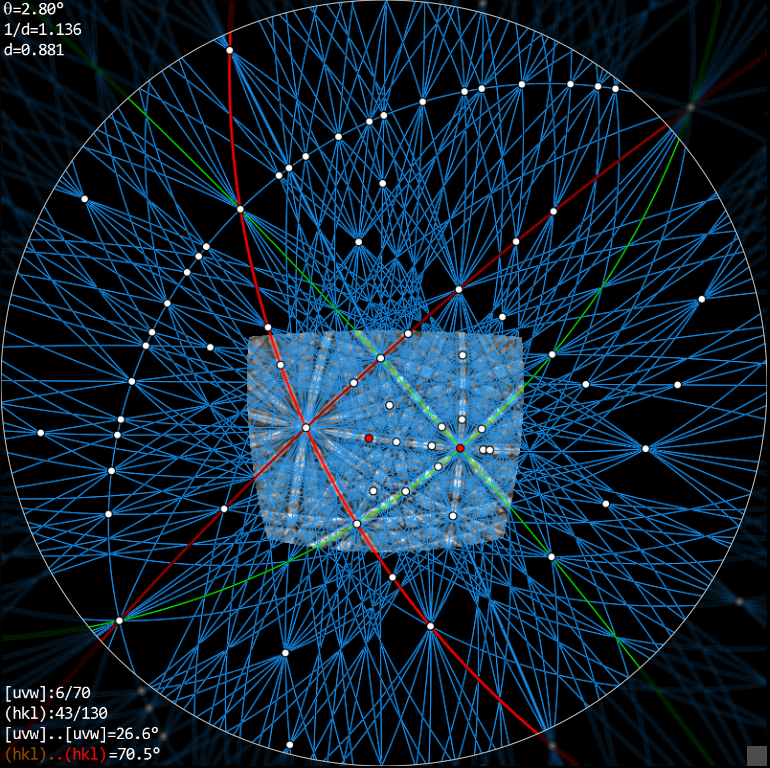

Zirconium pattern with 130 (hkl) and 70 declared [uvw] (white dots).
In the lower left corner last selected ([uvw] and (hkl) are shown by their ID. Below the angles between two marked zone axes (red dots) and lattice planes (red great circles) are shown.
In the upper left corner some dynamic data are displayed related to the just touched (hkl), i.e. the derived Bragg angle from the profile, the resulting dhkl but also the inverse value describing the distance of the reciprocal lattice point.

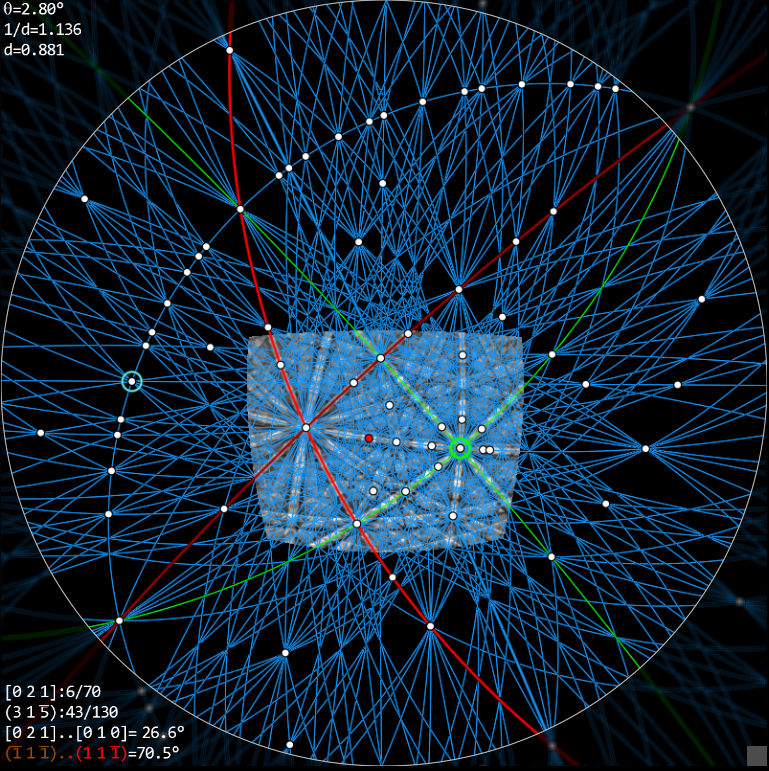

The display changes whe a lattice solution is selcted. Then the indices are correctly described.
The indices are now displayed by real numbers. The indices are now represented by real numbers.
Since the lattice is cubic, the angle between two {111} would ideally be 70.53°.
The angle between [021] and [010] is exactly 26.56°.
Please note: In order to prevent irritations or misinterpretations, for measured values only one decimal place is generally displayed in CALM.
